Xidhiidhiyaha Isku-dhafka ah ee 180 Degree
Sharaxaad

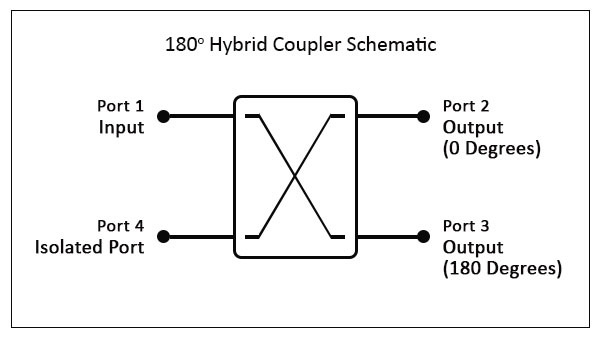

Qalabka Isku-xidhka Isku-xidhka 180° 3dB ee Concept waa qalab afar deked ah oo loo isticmaalo in si siman loogu kala qaybiyo calaamadda gelinta oo leh wareeg wejiga 180° ah oo u dhexeeya dekedaha ama in lagu daro laba calaamadood oo kala fog 180° marxaladda. Qalabka Isku-xidhka Isku-xidhka 180° badanaa waxay ka kooban yihiin giraan dhexe oo gudbiye ah oo leh wareeg ah 1.5 jeer hirarka (6 jeer hirarka rubuc). Deked kasta waxaa kala soocaya hirarka rubuc (90° marka la isku daro). Qaabeyntani waxay abuurtaa qalab lumis hooseeya oo leh VSWR hooseeya iyo dheelitirka wejiga iyo mugga oo aad u fiican. Noocan isku xidhka ah waxaa sidoo kale loo yaqaan "isku xidhka tartanka jiirka".
Helitaanka: KAYDKA KU JIRA, MOQ MA JIRO waana bilaash tijaabinta
Faahfaahinta Farsamada
| Lambarka Qaybta | Soo noqnoqoshada Kala duwanaanshaha | Gelinta Khasaare | VSWR | Karantiil | Ballaca Dheelitirnaan | Wejiga Dheelitirnaan |
| CHC00750M01500A180 | 750-1500MHz | ≤0.60dB | ≤1.40 | ≥22dB | ±0.5dB | ±10° |
| CHC01000M02000A180 | 1000-2000MHz | ≤0.6dB | ≤1.4 | ≥22dB | ±0.5dB | ±10° |
| CHC02000M04000A180 | 2000-4000MHz | ≤0.6dB | ≤1.4 | ≥20dB | ±0.5dB | ±10° |
| CHC02000M08000A180 | 2000-8000MHz | ≤1.2dB | ≤1.5 | ≥20dB | ±0.8dB | ±10° |
| CHC02000M18000A180 | 2000-18000MHz | ≤2.0dB | ≤1.8 | ≥15dB | ±1.2dB | ±12° |
| CHC04000M18000A180 | 4000-18000MHz | ≤1.8dB | ≤1.7 | ≥16dB | ±1.0dB | ±10° |
| CHC06000M18000A180 | 6000-18000MHz | ≤1.5dB | ≤1.6 | ≥16dB | ±1.0dB | ±10° |
Qoraallo
1. Awoodda gelinta waxaa lagu qiimeeyay rarka VSWR oo ka wanaagsan 1.20:1.
2. Tilmaamaha waa la beddeli karaa wakhti kasta iyada oo aan wax ogeysiis ah la bixin.
3. Khasaaraha guud waa wadarta khasaaraha gelinta + 3.0dB.
4. Qaabab kale, sida isku xirayaasha kala duwan ee gelinta iyo wax soo saarka, ayaa laga heli karaa lambarrada moodeelka kala duwan.
Adeegyada OEM iyo ODM waa la soo dhaweynayaa, SMA, N-Type, F-Type, BNC, TNC, 2.4mm iyo 2.92mm isku xirayaasha ayaa la heli karaa ikhtiyaar ahaan.
